A unique range of Enclosed Spring Mountings designed primarily for Building services applications where the control of low-frequency vibration & noise emanating from the mechanical plant is of paramount importance. The benefits of a combined rubber & steel housing for the spring are ideal to establish the ES & ECS mountings as industry standards by specifiers, equipment manufacturers & mechanical services installers.
We offer high-quality Enclose Spring mountings with mentioned design features:
- Nitrile rubber (oil resistant) lower spring housing eliminates the possibility of metallic continuity & ensures excellent acoustic performance. Steel reinforced on ECS range
- Full enclosed captive assembly protects the spring & controls transient motion
- All steel components zinc plated
- Spring with nominal deflections of 20, 25 & 50 mm, laterally stable & with 50% overload capacity
- Simple single bolt height adjustment
- Spring viewing/inspection hole & ribbed rubber seating pads available for ES25 & ECS ranges
- Colour coded labels for easy identification
Some Typical Applications of these isolators are:
- Axial & Centrifugal Fans
- Air Handling Units

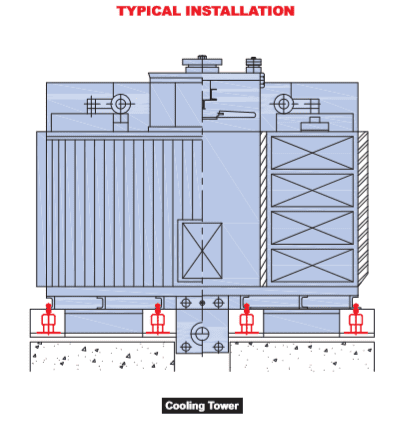

- Chillers & Cooling Towers
- Rotary & Multi Cylinder Compressors
- Diesel Generating Sets (ECS only)
- Mechanical Test Rigs
- Isolation of Sensitive Equipment etc.
